LED MODULES ΕΣΩΤΕΡΙΚΗΣ ΦΩΤΕΙΝΟΤΗΤΑΣ ΓΙΑ ΧΡΗΣΗ ΣΕ ΕΣΩΤΕΡΙΚΟΥΣ ΧΩΡΟΥΣ

Σας παραθέτουμε τα modules εσωτερικής φωτεινότητας έως 1.500 cd/m2 τα οποία μπορούν να χρησιμοποιηθούν σε εσωτερικούς χώρους ώστε τα μηνύματα να είναι ευανάγνωστα σε συνθήκες τεχνητού φωτισμού

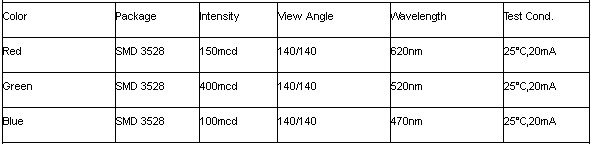

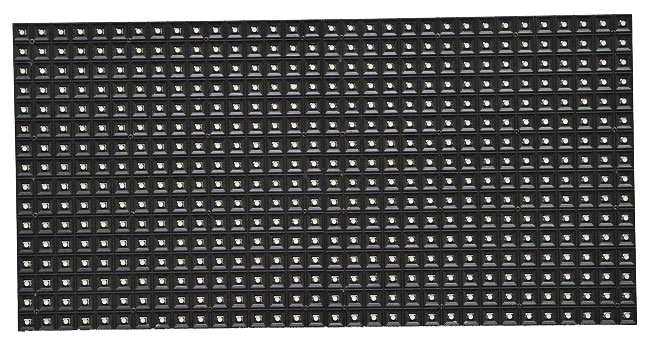

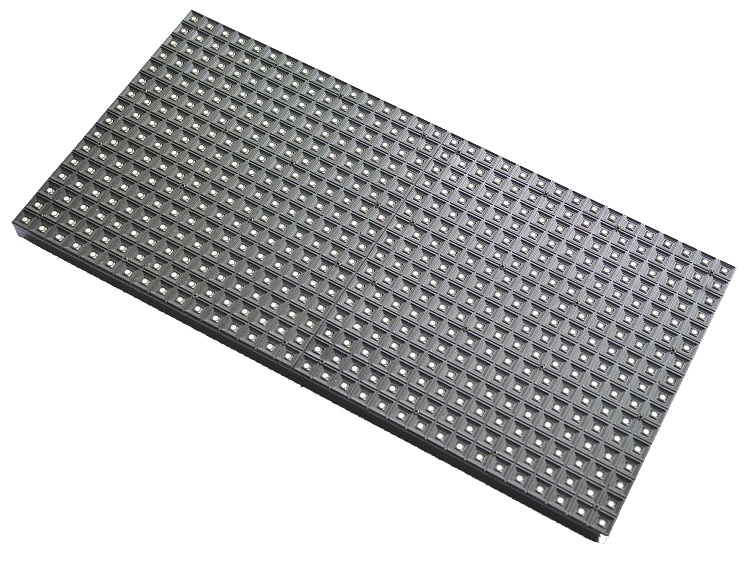

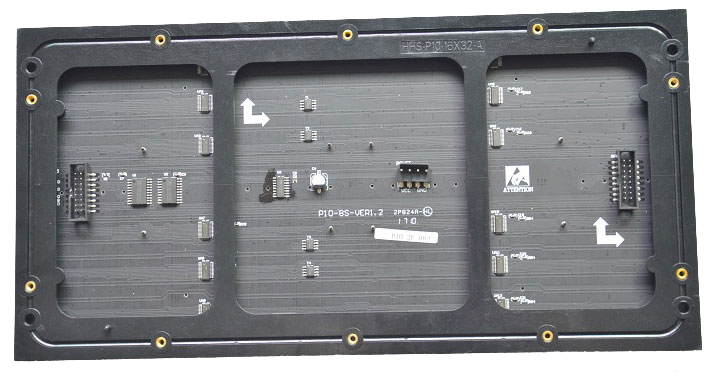

P10mm SMDLED module 32×16 εσωτερικής φωτεινότητας

Resolution: 32(H)x16(V)
Pitch: 10mm
Density: 10000pixels/sqm
Led Arrangement: SMD3528
Driver Mode: Dynamic 1/4 Duty constant current
Size: 320mm x 160mm
Mask: Pure Black mask-high contrast screen

Optical Ratings
Brightness: ≥800cd/sqm
View Angle: 140°(H) 140°(V)
View Distance: 10m-100m
Gray Scale: 8bits input, correction with 16bits
Display Color: 16.7M
Brightness Adjustment: 100 levels

Power Supply
Operation Power: AC100 – 240V 50-60Hz Switch-able
Maxim Power Consumption: 650 W/sqm
Average Power Consumption: 380 W/sqm

Control System
Correction Scale Level: 16bits
Frame Update Frequency: 60Hz
Screen Refresh Frequency: 480Hz
Gamma Correction: -5.0 – 5.0
Support Input: Composite Video, S-Video, DVI, HDMI, SDI, HD_SDI
Control Distance: Ethernet cable 100m, optical fiber 5km
Support VGA Mode: 800χ600, 1024χ768, 1280χ1024, 1600χ1200
Color Temperature: 5000-9300 adjustable
Brightness Correction: dot by dot, module by module, cabinet by cabinet

Reliability
Operating Temp.: -20-60 Celcius degree
Operating Humidity: 10-95% RH
Operating Life: 100.000 hours
MTBF: 5000 hours
Continuous Working Time: ≥48hours
Protection Level: IP54
Out of Control Pixel Rate: 0.01%

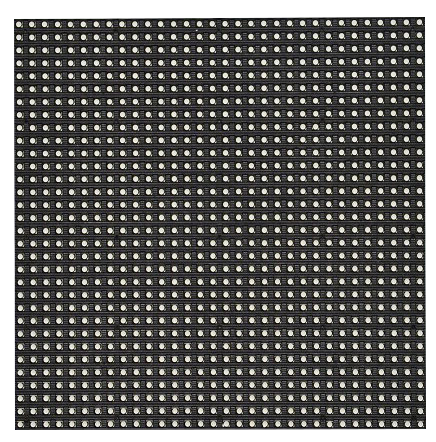

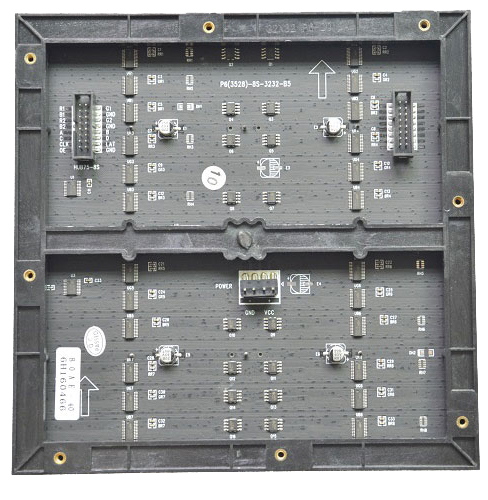

P6mm SMD LED module 32×32 εσωτερικής φωτεινότητας

Resolution: 32(H)x32(V)
Pitch: 6mm
Density: 27778pixels/sqm
Led Arrangement: SMD3528
Driver Mode: Dynamic 1/8 Duty constant current
Size: 192mm x 192mm
Mask: Pure Black mask-high contrast screen

Optical Ratings
Brightness: ≥1000cd/sqm
View Angle: 140°(H) 140°(V)
View Distance: 6m-60m
Gray Scale: 8bits input, correction with 16bits
Display Color: 16.7M
Brightness Adjustment: 100 levels

Power Supply
Operation Power: AC100 – 240V 50-60Hz Switch-able
Maxim Power Consumption: 700 W/sqm
Average Power Consumption: 400 W/sqm

Control System
Correction Scale Level: 16bits
Frame Update Frequency: 60Hz
Screen Refresh Frequency: 480Hz
Gamma Correction: -5.0 – 5.0
Support Input: Composite Video, S-Video, DVI, HDMI, SDI, HD_SDI
Control Distance: Ethernet cable 100m, optical fiber 5km
Support VGA Mode: 800χ600, 1024χ768, 1280χ1024, 1600χ1200
Color Temperature: 5000-9300 adjustable
Brightness Correction: dot by dot, module by module, cabinet by cabinet

Reliability
Operating Temp.: -20-60 Celcius degree
Operating Humidity: 10-95% RH
Operating Life: 100.000 hours
MTBF: 5000 hours
Continuous Working Time: ≥48hours
Protection Level: IP54
Out of Control Pixel Rate: 0.01%

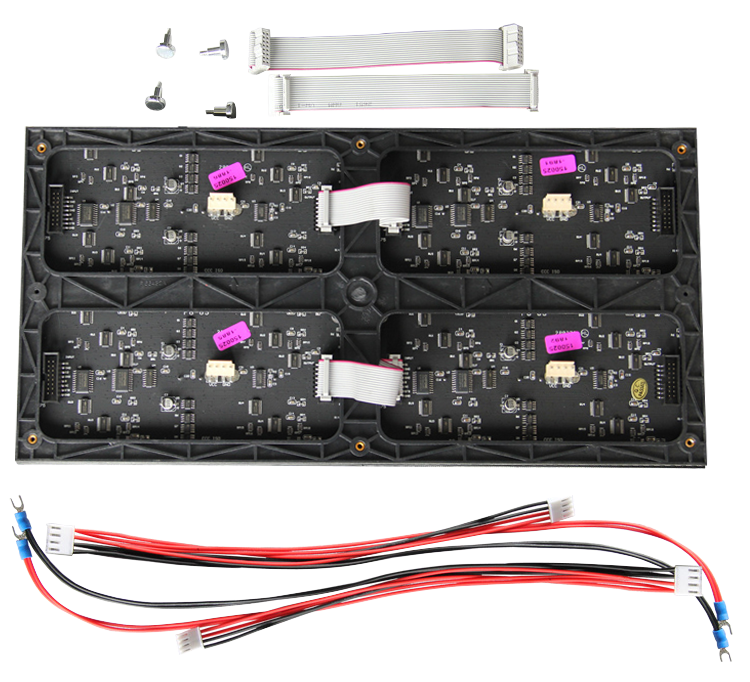

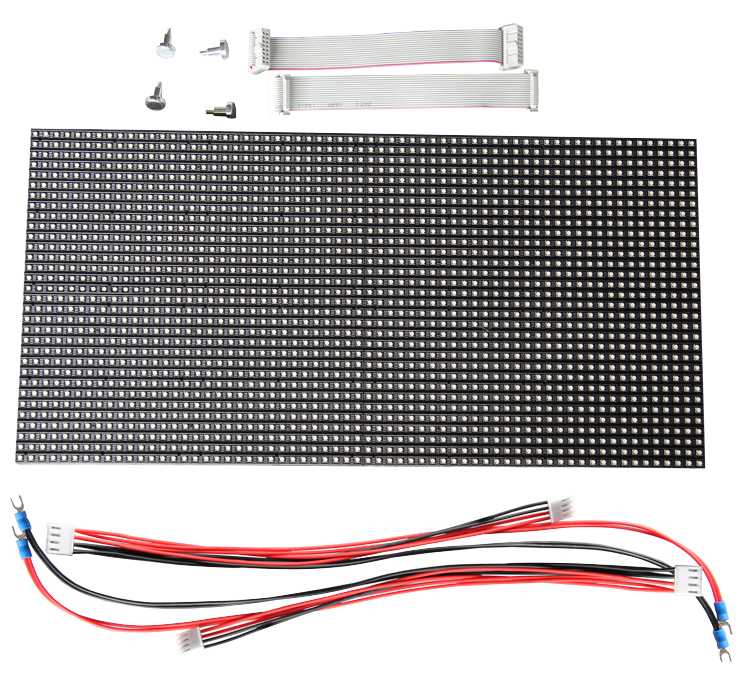

P6mmSMD3528 LED module 64×32 εσωτερικής φωτεινότητας

Resolution: 64(H)x32(V)
Pitch: 6mm
Density: 27778pixels/sqm
Led Arrangement: SMD3528
Driver Mode: Dynamic 1/8 Duty constant current
Size: 384mm x 192mm
Mask: Pure Black mask-high contrast screen

Optical Ratings
Brightness: ≥1000cd/sqm
View Angle: 140°(H) 140°(V)
View Distance: 6m-60m
Gray Scale: 8bits input, correction with 16bits
Display Color: 16.7M
Brightness Adjustment: 100 levels

Power Supply
Operation Power: AC100 – 240V 50-60Hz Switch-able
Maxim Power Consumption: 800 W/sqm
Average Power Consumption: 400 W/sqm

Control System
Correction Scale Level: 16bits
Frame Update Frequency: 60Hz
Screen Refresh Frequency: 480Hz
Gamma Correction: -5.0 – 5.0
Support Input: Composite Video, S-Video, DVI, HDMI, SDI, HD_SDI
Control Distance: Ethernet cable 100m, optical fiber 5km
Support VGA Mode: 800χ600, 1024χ768, 1280χ1024, 1600χ1200
Color Temperature: 5000-9300 adjustable
Brightness Correction: dot by dot, module by module, cabinet by cabinet

Reliability
Operating Temp.: -20-60 Celcius degree
Operating Humidity: 10-95% RH
Operating Life: 100.000 hours
MTBF: 5000 hours
Continuous Working Time: ≥48hours
Protection Level: IP54
Out of Control Pixel Rate: 0.01%

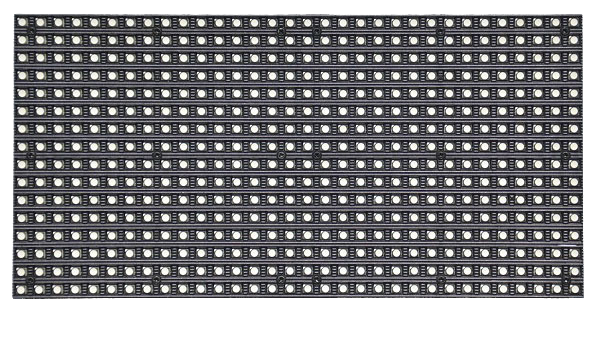

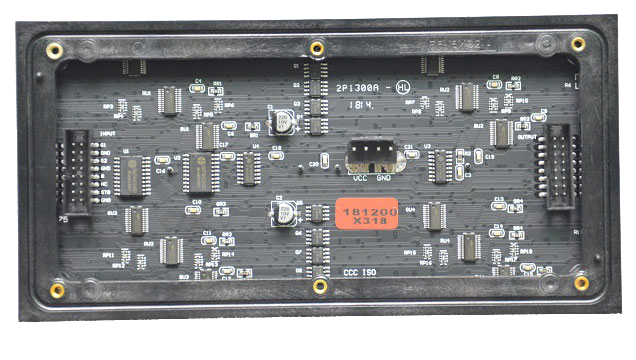

P6mm SMD3528 LED module 32×16 εσωτερικής φωτεινότητας

Resolution: 32(H)x16(V)
Pitch: 5mm
Density: 27778pixels/sqm
Led Arrangement: SMD3528
Driver Mode: Dynamic 1/8 Duty constant current
Size: 192mm x 192mm
Mask: Pure Black mask-high contrast screen

Optical Ratings
Brightness: ≥1000cd/sqm
View Angle: 140°(H) 140°(V)
View Distance: 6m-60m
Gray Scale: 8bits input, correction with 16bits
Display Color: 16.7M
Brightness Adjustment: 100 levels

Power Supply
Operation Power: AC100 – 240V 50-60Hz Switch-able
Maxim Power Consumption: 700 W/sqm
Average Power Consumption: 400 W/sqm

Control System
Correction Scale Level: 16bits
Frame Update Frequency: 60Hz
Screen Refresh Frequency: 480Hz
Gamma Correction: -5.0 – 5.0
Support Input: Composite Video, S-Video, DVI, HDMI, SDI, HD_SDI
Control Distance: Ethernet cable 100m, optical fiber 5km
Support VGA Mode: 800χ600, 1024χ768, 1280χ1024, 1600χ1200
Color Temperature: 5000-9300 adjustable
Brightness Correction: dot by dot, module by module, cabinet by cabinet

Reliability
Operating Temp.: -20-60 Celcius degree
Operating Humidity: 10-95% RH
Operating Life: 100.000 hours
MTBF: 5000 hours
Continuous Working Time: ≥48hours
Protection Level: IP54
Out of Control Pixel Rate: 0.01%

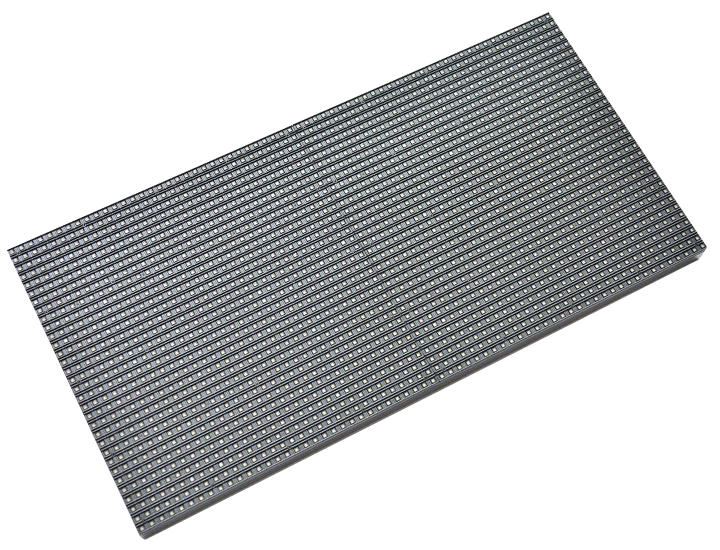

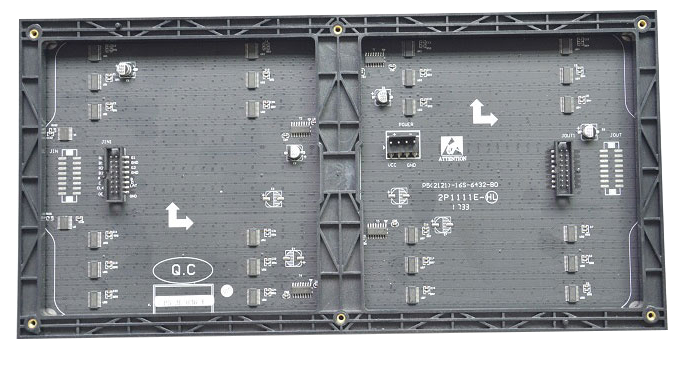

P5mm SMD3528 LED module 64×32 εσωτερικής φωτεινότητας

Resolution: 64(H)x32(V)
Pitch: 5mm
Density: 40000pixels/sqm
Led Arrangement: SMD3528
Driver Mode: Dynamic 1/16 Duty constant current
Size: 320mm x 160mm
Mask: Pure Black mask-high contrast screen

Optical Ratings
Brightness: ≥1000cd/sqm
View Angle: 140°(H) 140°(V)
View Distance: 5m-50m
Gray Scale: 8bits input, correction with 16bits
Display Color: 16.7M
Brightness Adjustment: 100 levels

Power Supply
Operation Power: AC100 – 240V 50-60Hz Switch-able
Maxim Power Consumption: 700 W/sqm
Average Power Consumption: 400 W/sqm

Control System
Correction Scale Level: 16bits
Frame Update Frequency: 60Hz
Screen Refresh Frequency: 480Hz
Gamma Correction: -5.0 – 5.0
Support Input: Composite Video, S-Video, DVI, HDMI, SDI, HD_SDI
Control Distance: Ethernet cable 100m, optical fiber 5km
Support VGA Mode: 800χ600, 1024χ768, 1280χ1024, 1600χ1200
Color Temperature: 5000-9300 adjustable
Brightness Correction: dot by dot, module by module, cabinet by cabinet

Reliability
Operating Temp.: -20-60 Celcius degree
Operating Humidity: 10-95% RH
Operating Life: 100.000 hours
MTBF: 5000 hours
Continuous Working Time: ≥48hours
Protection Level: IP54
Out of Control Pixel Rate: 0.01%

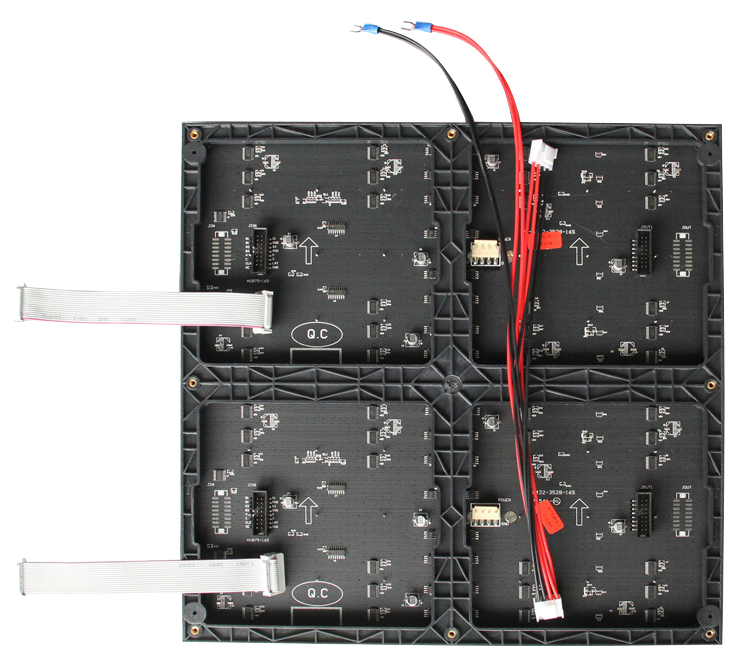

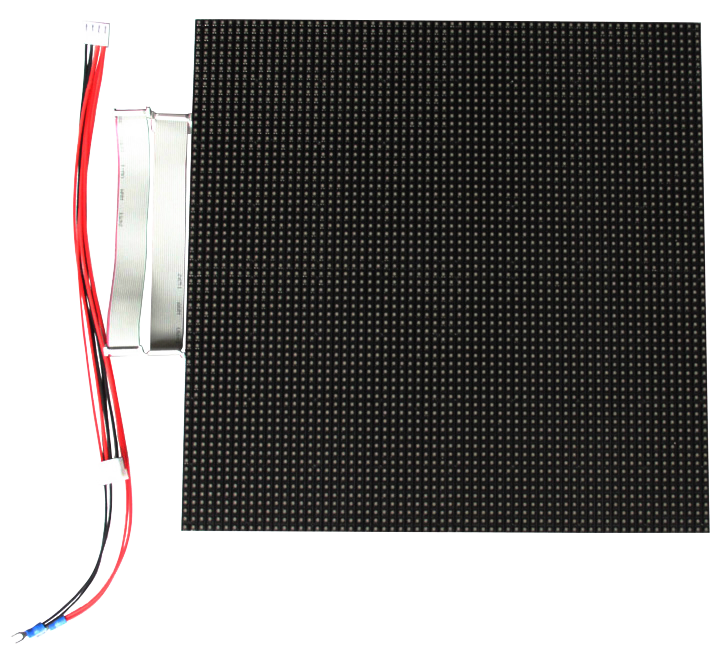

P5mm SMD3528 LED module 32×32 εσωτερικής φωτεινότητας

Resolution: 32(H)x32(V)
Pitch: 5mm
Density: 40000pixels/sqm
Led Arrangement: SMD3528
Driver Mode: Dynamic 1/16 Duty constant current
Size: 160mm x 160mm
Mask: Pure Black mask-high contrast screen

Optical Ratings
Brightness: ≥1000cd/sqm
View Angle: 140°(H) 140°(V)
View Distance: 5m-50m
Gray Scale: 8bits input, correction with 16bits
Display Color: 16.7M
Brightness Adjustment: 100 levels

Power Supply
Operation Power: AC100 – 240V 50-60Hz Switch-able
Maxim Power Consumption: 700 W/sqm
Average Power Consumption: 400 W/sqm

Control System
Correction Scale Level: 16bits
Frame Update Frequency: 60Hz
Screen Refresh Frequency: 480Hz
Gamma Correction: -5.0 – 5.0
Support Input: Composite Video, S-Video, DVI, HDMI, SDI, HD_SDI
Control Distance: Ethernet cable 100m, optical fiber 5km
Support VGA Mode: 800χ600, 1024χ768, 1280χ1024, 1600χ1200
Color Temperature: 5000-9300 adjustable
Brightness Correction: dot by dot, module by module, cabinet by cabinet

Reliability
Operating Temp.: -20-60 Celcius degree
Operating Humidity: 10-95% RH
Operating Life: 100.000 hours
MTBF: 5000 hours
Continuous Working Time: ≥48hours
Protection Level: IP54
Out of Control Pixel Rate: 0.01%

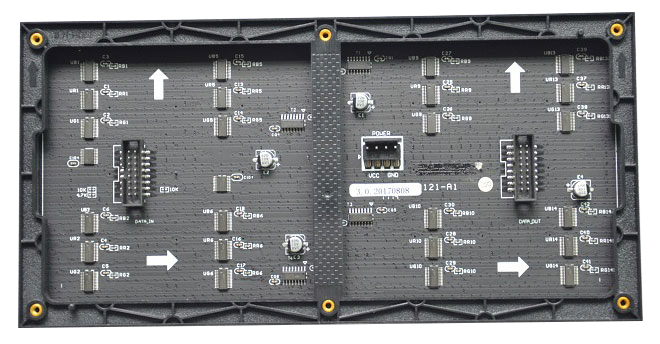

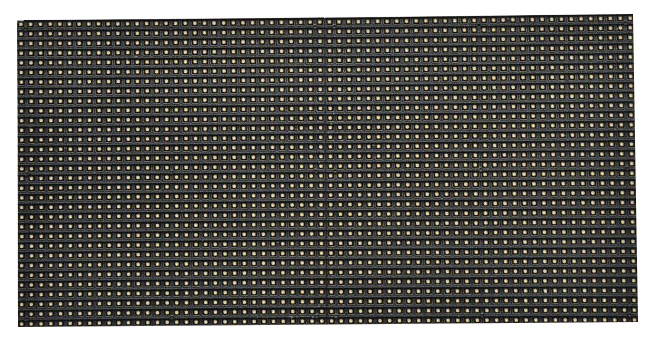

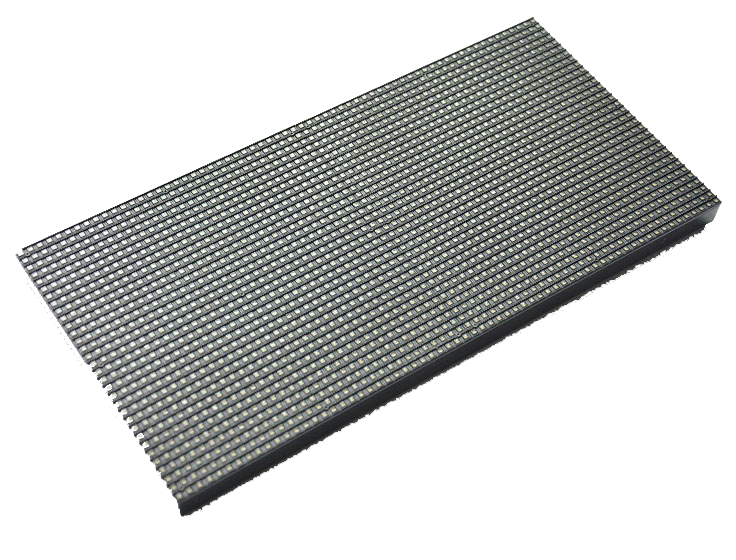

P4mm SMD LED module 64×32 εσωτερικής φωτεινότητας

Resolution: 64(H)x32(V)
Pitch: 4mm
Density: 62500pixels/sqm

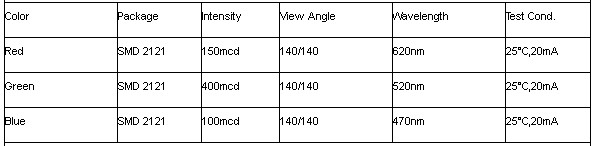

Led Arrangement: SMD2121
Driver Mode: Dynamic 1/16 Duty constant current
Size: 256mm x 128mm
Mask: Pure Black mask-high contrast screen

Optical Ratings
Brightness: ≥1000cd/sqm
View Angle: 140°(H) 140°(V)
View Distance: 4m-40m
Gray Scale: 8bits input, correction with 16bits
Display Color: 16.7M
Brightness Adjustment: 100 levels

Power Supply
Operation Power: AC100 – 240V 50-60Hz Switch-able
Maxim Power Consumption: 750 W/sqm
Average Power Consumption: 430 W/sqm

Control System
Correction Scale Level: 16bits
Frame Update Frequency: 60Hz
Screen Refresh Frequency: 480Hz
Gamma Correction: -5.0 – 5.0
Support Input: Composite Video, S-Video, DVI, HDMI, SDI, HD_SDI
Control Distance: Ethernet cable 100m, optical fiber 5km
Support VGA Mode: 800χ600, 1024χ768, 1280χ1024, 1600χ1200
Color Temperature: 5000-9300 adjustable
Brightness Correction: dot by dot, module by module, cabinet by cabinet

Reliability
Operating Temp.: -20-60 Celcius degree
Operating Humidity: 10-95% RH
Operating Life: 100.000 hours
MTBF: 5000 hours
Continuous Working Time: ≥48hours
Protection Level: IP54
Out of Control Pixel Rate: 0.01%

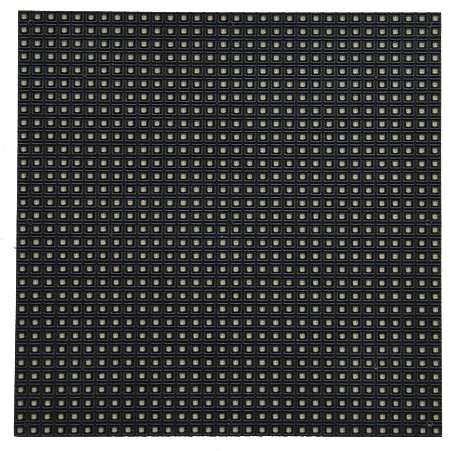

P4mm SMD LED module 32×32 εσωτερικής φωτεινότητας

Resolution: 32(H)x32(V)
Pitch: 4mm
Density: 62500pixels/sqm
Led Arrangement: SMD2121
Driver Mode: Dynamic 1/16 Duty constant current
Size: 128mm x 128mm
Mask: Pure Black mask-high contrast screen

Optical Ratings
Brightness: ≥1000cd/sqm
View Angle: 140°(H) 140°(V)
View Distance: 4m-40m
Gray Scale: 8bits input, correction with 16bits
Display Color: 16.7M
Brightness Adjustment: 100 levels

Power Supply
Operation Power: AC100 – 240V 50-60Hz Switch-able
Maxim Power Consumption: 750 W/sqm
Average Power Consumption: 430 W/sqm

Control System
Correction Scale Level: 16bits
Frame Update Frequency: 60Hz
Screen Refresh Frequency: 480Hz
Gamma Correction: -5.0 – 5.0
Support Input: Composite Video, S-Video, DVI, HDMI, SDI, HD_SDI
Control Distance: Ethernet cable 100m, optical fiber 5km
Support VGA Mode: 800χ600, 1024χ768, 1280χ1024, 1600χ1200
Color Temperature: 5000-9300 adjustable
Brightness Correction: dot by dot, module by module, cabinet by cabinet

Reliability
Operating Temp.: -20-60 Celcius degree
Operating Humidity: 10-95% RH
Operating Life: 100.000 hours
MTBF: 5000 hours
Continuous Working Time: ≥48hours
Protection Level: IP54
Out of Control Pixel Rate: 0.01%

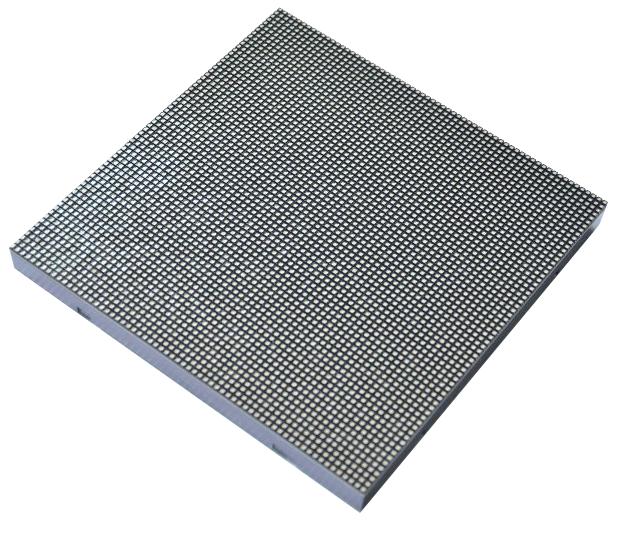

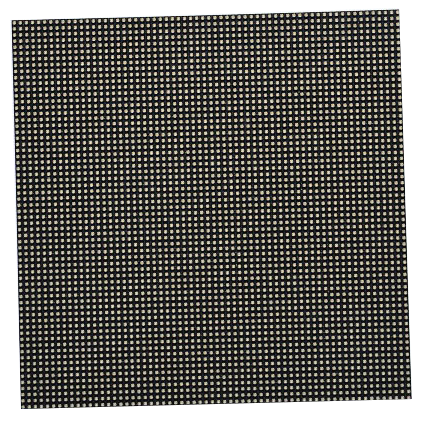

P3mm SMD LED module 64×64 εσωτερικής φωτεινότητας

Resolution: 64(H)x32(V)
Pitch: 3mm
Density: 111.111pixels/sqm
Led Arrangement: SMD2121
Driver Mode: Dynamic 1/16 Duty constant current
Size: 192mm x 192mm
Mask: Pure Black mask-high contrast screen

Optical Ratings
Brightness: ≥1000cd/sqm
View Angle: 140°(H) 140°(V)
View Distance: 3m-30m
Gray Scale: 8bits input, correction with 16bits
Display Color: 16.7M
Brightness Adjustment: 100 levels

Power Supply
Operation Power: AC100 – 240V 50-60Hz Switch-able
Maxim Power Consumption: 750 W/sqm
Average Power Consumption: 430 W/sqm

Control System
Correction Scale Level: 16bits
Frame Update Frequency: 60Hz
Screen Refresh Frequency: 480Hz
Gamma Correction: -5.0 – 5.0
Support Input: Composite Video, S-Video, DVI, HDMI, SDI, HD_SDI
Control Distance: Ethernet cable 100m, optical fiber 5km
Support VGA Mode: 800χ600, 1024χ768, 1280χ1024, 1600χ1200
Color Temperature: 5000-9300 adjustable
Brightness Correction: dot by dot, module by module, cabinet by cabinet

Reliability
Operating Temp.: -20-60 Celcius degree
Operating Humidity: 10-95% RH
Operating Life: 100.000 hours
MTBF: 5000 hours
Continuous Working Time: ≥48hours
Protection Level: IP54
Out of Control Pixel Rate: 0.01%

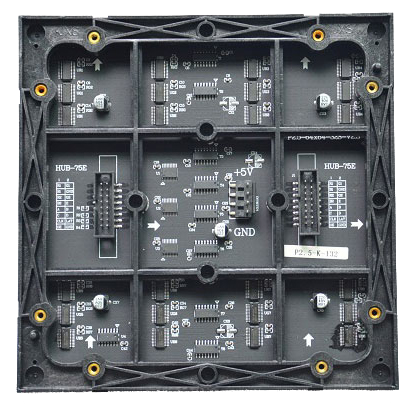

P2.5mm SMD LED module 64×64 εσωτερικής φωτεινότητας

Resolution: 64(H)x64(V)
Pitch: 2.5mm
Density: 160000pixels/sqm
Led Arrangement: SMD2121
Driver Mode: Dynamic 1/32 Duty constant current
Size: 160mm x 160mm
Mask: Pure Black mask-high contrast screen

Optical Ratings
Brightness: ≥1000cd/sqm
View Angle: 140°(H) 140°(V)
View Distance: 2.5m-25m
Gray Scale: 8bits input, correction with 16bits
Display Color: 16.7M
Brightness Adjustment: 100 levels

Power Supply
Operation Power: AC100 – 240V 50-60Hz Switch-able
Maxim Power Consumption: 850 W/sqm
Average Power Consumption: 480 W/sqm

Control System
Correction Scale Level: 16bits
Frame Update Frequency: 60Hz
Screen Refresh Frequency: 480Hz
Gamma Correction: -5.0 – 5.0
Support Input: Composite Video, S-Video, DVI, HDMI, SDI, HD_SDI
Control Distance: Ethernet cable 100m, optical fiber 5km
Support VGA Mode: 800χ600, 1024χ768, 1280χ1024, 1600χ1200
Color Temperature: 5000-9300 adjustable
Brightness Correction: dot by dot, module by module, cabinet by cabinet

Reliability
Operating Temp.: -20-60 Celcius degree
Operating Humidity: 10-95% RH
Operating Life: 100.000 hours
MTBF: 5000 hours
Continuous Working Time: ≥48hours
Protection Level: IP54
Out of Control Pixel Rate: 0.01%
